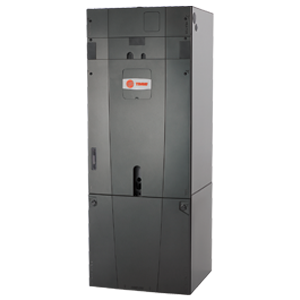

Hyperion XR Series 4 Air Handler
Helping to circulate better air, the Hyperion air handler is built unlike anything the market has ever seen. For one thing, its constructed more like a refrigerator, with insulation between the double walls of the uniquely designed cabinet.
- Uniquely designed cabinet
- Fully enclosed insulation
- All-aluminum coil
- Unique modular design
- Electronic expansion valve metering device that is 400% more reliable than standard expansion valves
- Quick-turn fasteners
- No leak drain pan made from rust-resistant composites and built with a gradual slope
- Heating options for either hydronic or electric heat
- Corrosion-resistant finish
- High quality components
MODEL | Tons | Clg. Cap. MBtuH | CFM Max | Dimensions HxWxD | Weight Lbs. |
---|
TAM4A0A18 | 1.5 | 18.0 | 743 | 50x17.5x22 | 123 |
TAM4A0A24 | 2.0 | 24.0 | 871 | 50x17.5x22 | 126 |
TAM4A0A30 | 2.5 | 30.0 | 1013 | 50x17.5x22 | 127 |
TAM4A0A36 | 3.0 | 36.0 | 1322 | 50x17.5x22 | 130 |
TAM4A0B42 | 3.5 | 42.0 | 1495 | 56x21x22 | 144 |
TAM4A0C48 | 4.0 | 48.0 | 1711 | 57x23.5x22 | 155 |
TAM4A0C60 | 5.0 | 60.0 | 1956 | 62x23.5x22 | 171 |
Warranty Information
- Internal Functional Parts for 120 months -
Available Documents
51-8622.pdf (Consumer Literature, Customer Information, Color)
51-8623.pdf (Owners Manual, Customer Information)
